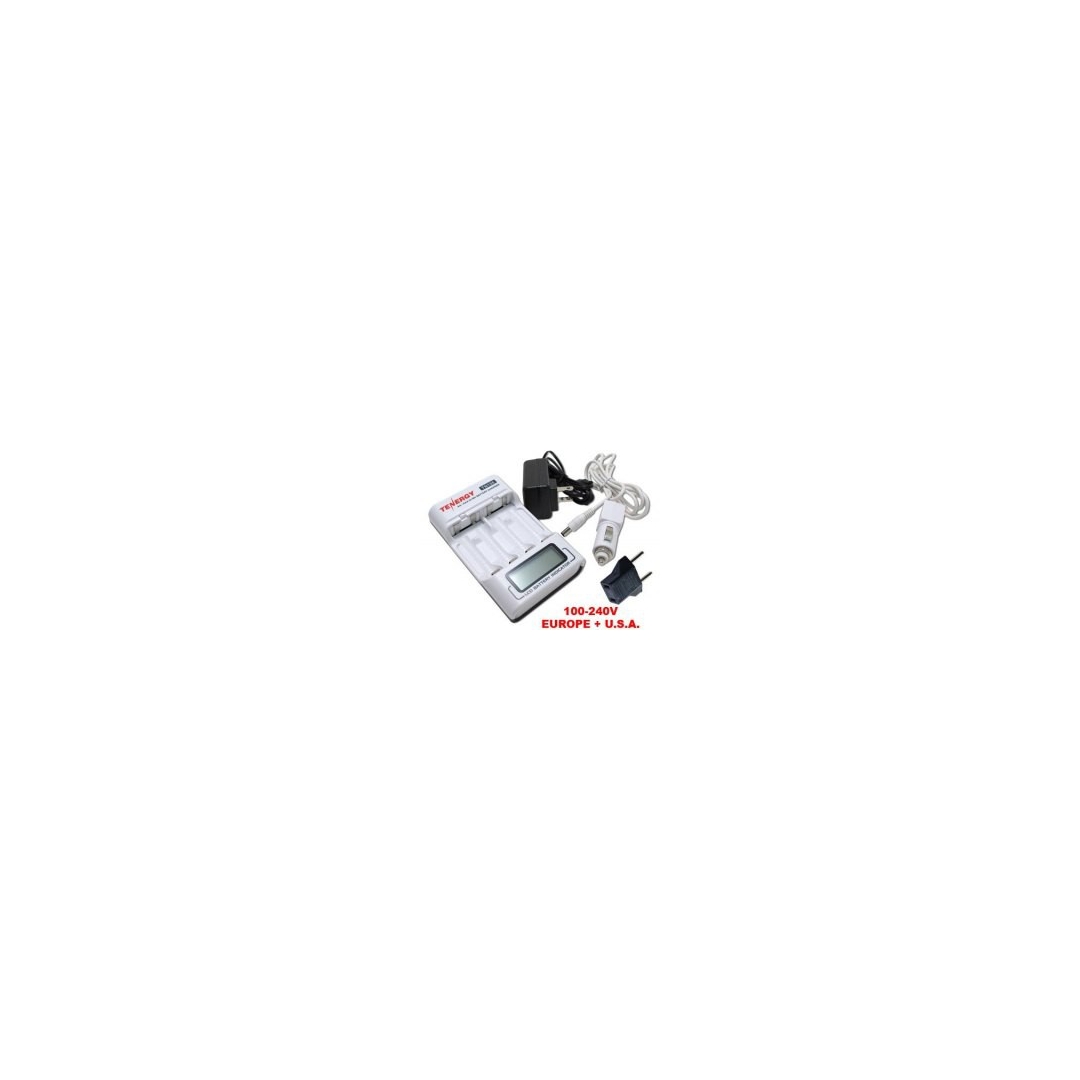

Tenergy TN156 4-Bay AA/AAA NiMH LCD Battery Charger

Tenergy TN156 4-Bay AA/AAA NiMH LCD Battery Charger

as low as $ 12.01

TN156

Availability : This product is no longer in stock

From (qty)Price
1$ 15.01
5 $ 13.51
10 $ 12.01

Features and Benefits:

  • Worldwide voltage for 100-240V AC input.
  • Micro-processor control (-Delta V detection) which automatically controls the charging process.
  • Four independent charging channels for individual battery charging and detection.
  • Constant charging current mode; trickle current when fully charged.
  • Eight hours charging time cut-off to ensure safety.



Operation Instructions:

  1. Insert 1 to 4 pieces of 1.2V AA/AAA rechargeable Ni-MH batteries into the battery compartment.
  2. Make correct contact with polarity (+ and -) according to the sign in the battery compartment.
  3. Before charging, insert the batteries into the channels then connect the adapter plug to the power supply:
  4. LCD will light up in red to indicate proper charging.
  5. When charging is finished, extract the plug and batteries.



Easy-to-Read LCD Indicators:

Charger Tenergy schema



Specifications:

  • Input:100-240V ~ 50/60Hz 0.2A
  • Output:
  • AA 1.2V x 2 --------------1000mA
  • AA 1.2V x 4 -------------- 500mA
  • AAA 1.2V x 2 ------------ 500mA
  • AAA 1.2V x 4 ------------ 250mA



Download the user manual by clicking here.

  • Label Tenergy
  • Equivalence LR03, LR06, LR3, LR6, AA, AAA
